Deborah R. Fowler
Vectors, Velocity and Angular Velocity
This originated from the Tank Game Exercise in ITGM-315 - some
review of these concepts is sometimes helpful.

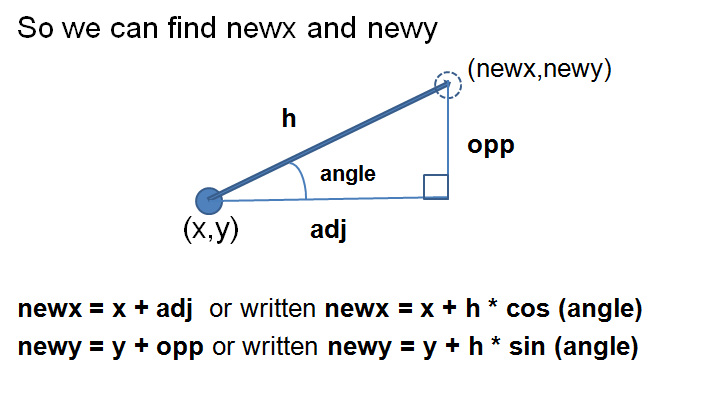

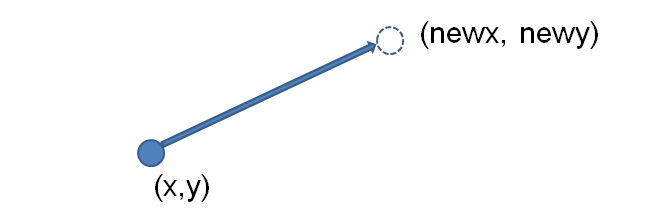

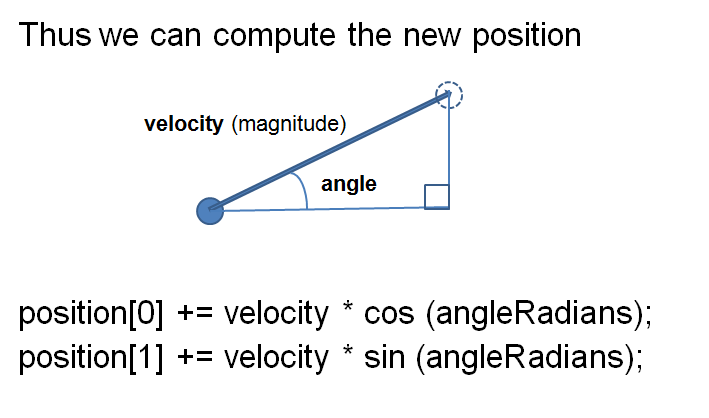

Given that we know the speed of an object (usually in distance units/time units ie. miles per hour, units per second) and the angle it is pointing toward (later we'll talk about angularVelocity) given a reference direction, say the x-axis, how do I find the new position?

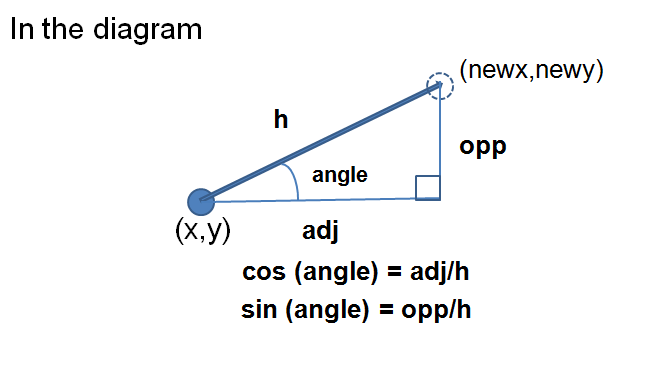

We can calculate the distance it has traveled
= speed * elapsed time, let's
call this h ie. units/sec * sec = units

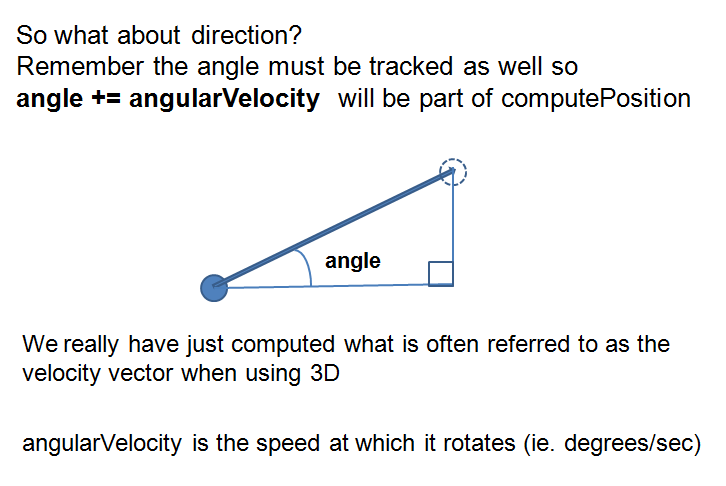

We can
calculate the rotation = angularSpeed *
elapsed time, let's call this direction ie.
degrees/sec * sec = degrees
Given that we know the speed of an object (usually in distance units/time units ie. miles per hour, units per second) and the angle it is pointing toward (later we'll talk about angularVelocity) given a reference direction, say the x-axis, how do I find the new position?
