"Trig Deeper" including dot product and Pythagorean theorem

This is a continuation of the discussion of trigonometry but now with an object with thickness that doesn't pivot on the bottom line. Please click here the previous discussion.


Overview

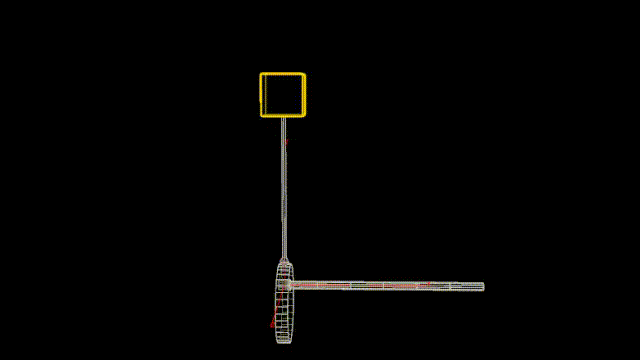

This time I'm starting with my example file for intersection analysis. To start, let's simply but a box on top (base of the box is on the ground plane by using ch("sizey") * .5 in the center y parameter.

Exercise: grab the intersection analysis sample file from the tip and tricks page and place a box following the top of the tube using the bbox function and D_YMAX the box object should be sitting on the ground to start. try using a separate container with just the box in it and reference the value of the tube

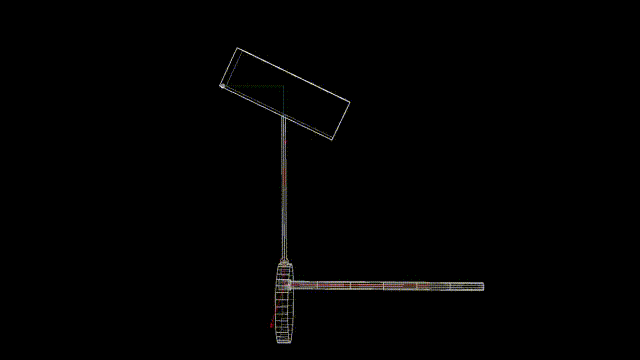

If we have a box that we want to rotate, if it is from the bottom, it is the same as we did before with atan( bbox D_YMAX of the tube - position in y of the box and then divided by the position in x)



So just like the butterfly example. This can be achieved with hscript or a point wrangle node.

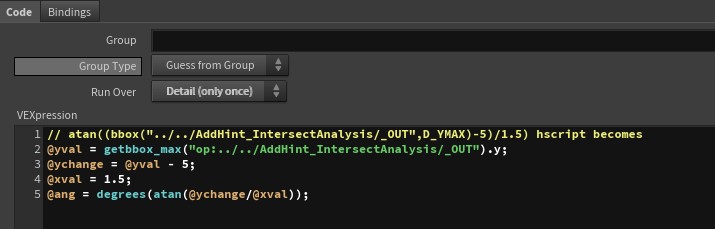

Exercise: take your previous file and use both hscript and also point wrangle to move the box.

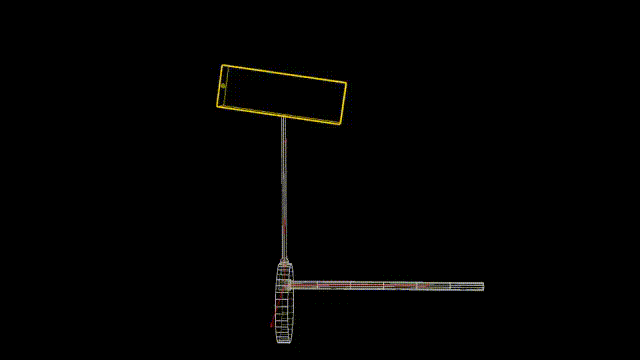

Now what if we didn't want the pivot point at the bottom? What if the box was to pivot based on the thickness.


In order to do this, we need to use the dot product. Quick review:
A vector has magnitude (length) and direction. The dot product between two vectors represents a scalar value that is the cosine of the angle between the vectors.
By definition, the dot product between

• vector a dot vector b = | vector a |  * | vector b |  * cos angle

• where | vector | is the magnitude of the vector


In wrangle nodes we have a function called dot that allows us to enter the normalized vectors and returns the dot product.

If we take the acos of that value and convert it to degrees (since vex works in radians) we have our answer.

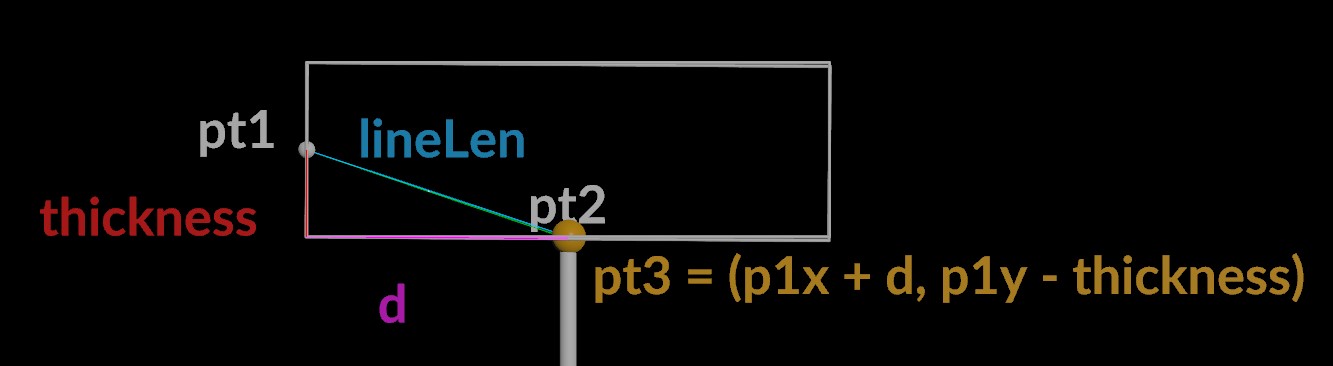

Given the following diagram
We have vector p2 - p1 and we have a vector p3 - p1 where p3 is d over in x and -thickness over in y given the box.

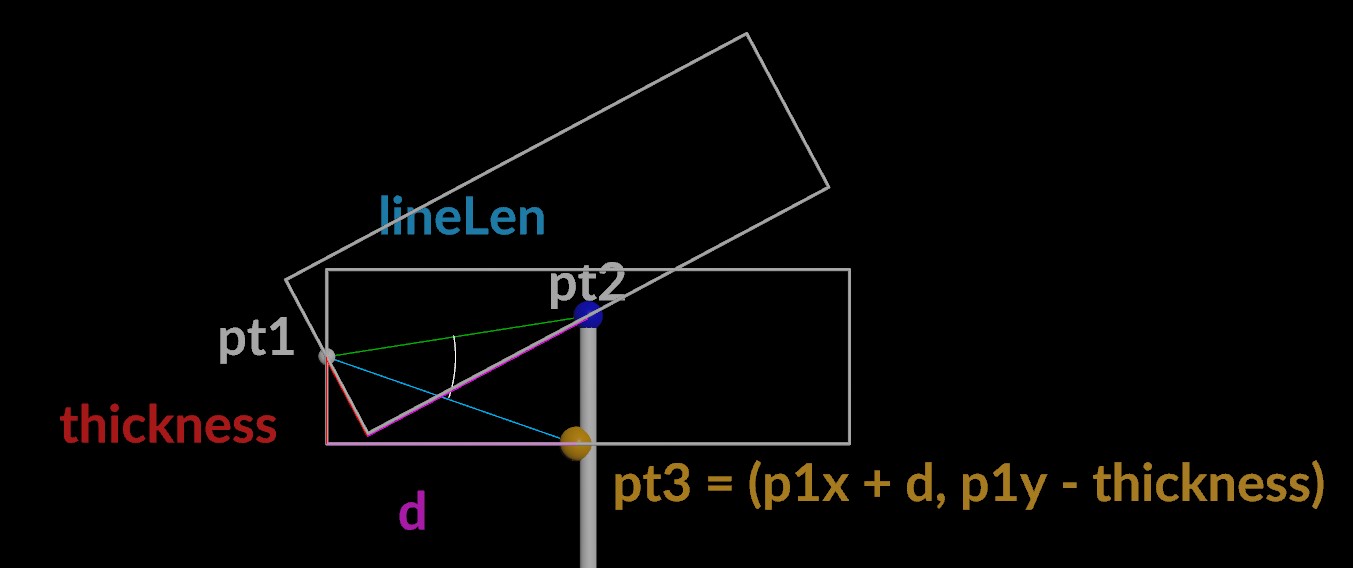

So the angle between the two vectors is the amount we need to rotate so that p3 is in position p2

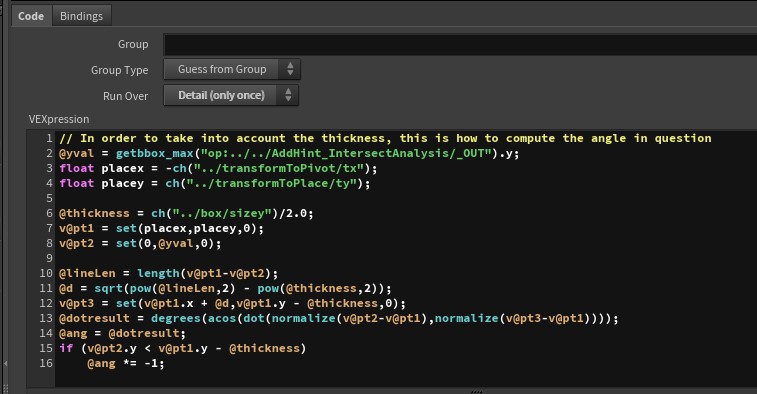

@dotresult = degrees(acos(dot(normalize(v@pt2-v@pt1),normalize(v@pt3-v@pt1))));

Note that @d is calculated by taking the sqrt of lineLen squared - thickness squared thanks to Pythagorean's theorem. In a right angle triangle, hyp squared = side1 squared + side2 squared therefore we subtract thickness and take the sqrt. This is the correct solution. It is worth nothing that a quick cheat with atan gets pretty close, but not completely accurate.

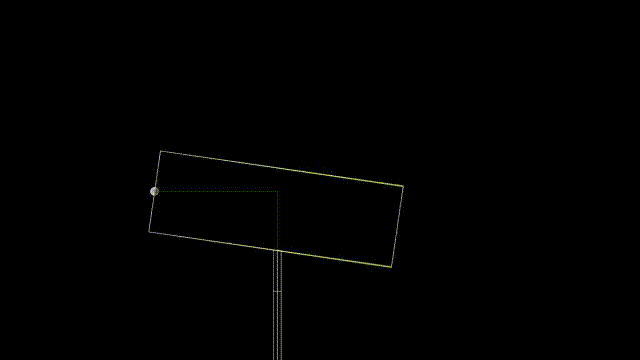

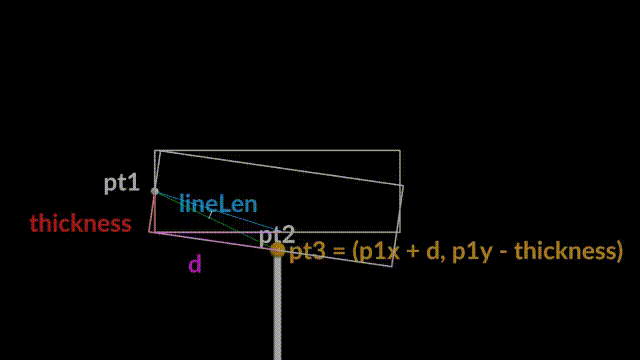

The results of simply taking the thickness away from the calculation in y comes very close. The "cheat" using the hscript expression result is show in yellow. The correct one is shown in white.

Inaccurate cheat:
Note that we could also be more accurate by using two lines to approximate the tube rather than just one. I have done so in my arbitrary gear rotation example https://www.youtube.com/shorts/WOwYyI11xSk or https://vimeo.com/687726753
