Deborah R. Fowler

Squares Illusion (Modulus)

Posted Dec 27 2019 Updated Dec 8 2020 animation; Update June 22 2023 3D anim Updated March 18 2026


Also on youtube at https://www.youtube.com/watch?v=wKpmDf5EYq8


Continuing with Illusions, from https://www.rd.com/article/optical-illusions/ I thought this looked like an excellent example to display modulus. Modulus is the remainder on integer division and made the recreation of this illusion easier to reproduce in Houdini.
MISSING IMAGE

As seen below, this illusion is using modulus.
MISSING IMAGE

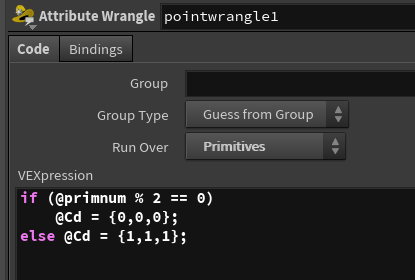

To start, create a rectangle using an add node. Clip node by 45 degrees on each end. Use modulus to apply black to every other clipped rectangle. Copy that triangle to create a larger triangle
MISSING IMAGE
Copy the compliment. Using modulus with source grid points, select every other point, sort, and then every other point again. Do this for both patterns.

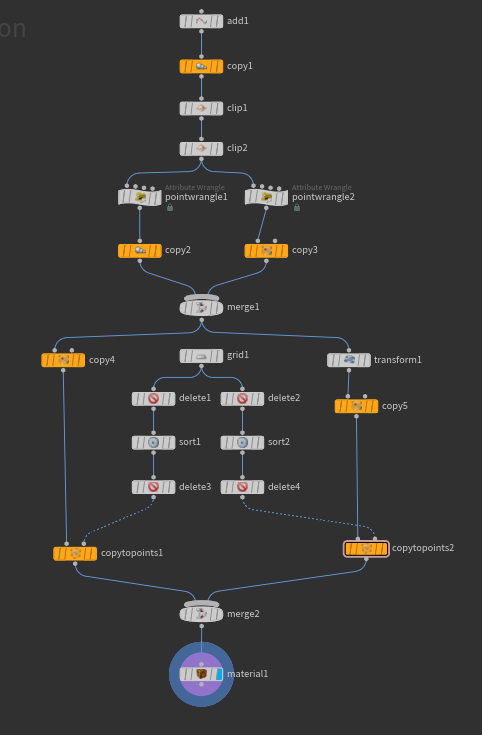

Below is the node network:
MISSING IMAGE

Below is an animation of levels of "stripes".

MISSING GIG

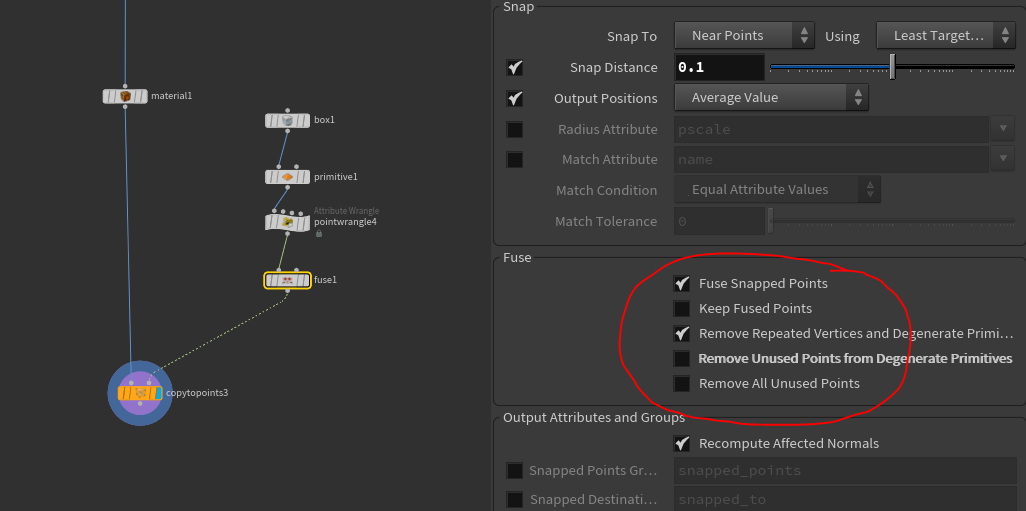

Taking this one step further, copy these faces onto the points of a cube to get a 3D version. The box faces are scaled to zero in the primitive node and the points fused. The settings for the fuse node are below.

MISSING IMAGEMISSING IMAGE

Added June 23, 2023 a 3D animation from January



Also on https://www.youtube.com/shorts/CTqtFjv1PO4
