Gear Ratio
Looking at the wiki entry for
gear ratio, it seems quite complex, however here is a
simplified version.
Gear ratio is the number of revolutions from one
gear to the next. It depends on the number of teeth.

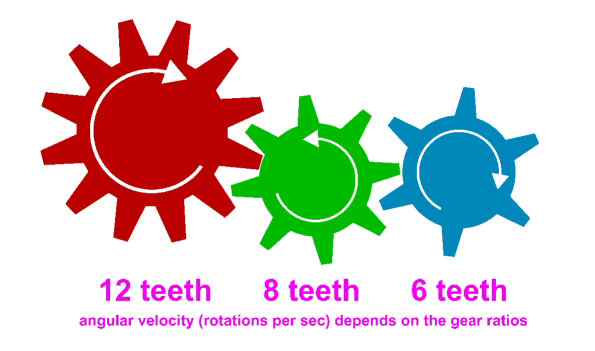

For example,
These gears each have differing angular velocity.
For example, if implemented in Houdini, the red gear could be rotating at say -$F (frames per second), call this the rotateRedGear
Then the green gear next to it, with 8 teeth, would rotate at a rate of -ch("../rotateRedGear/rz") * 12 / 8
Then the blue gear next to that one, with 6 teeth would rotate at a rate of -ch("../rotateGreenGear/rz") * 8 / 6
Here is the

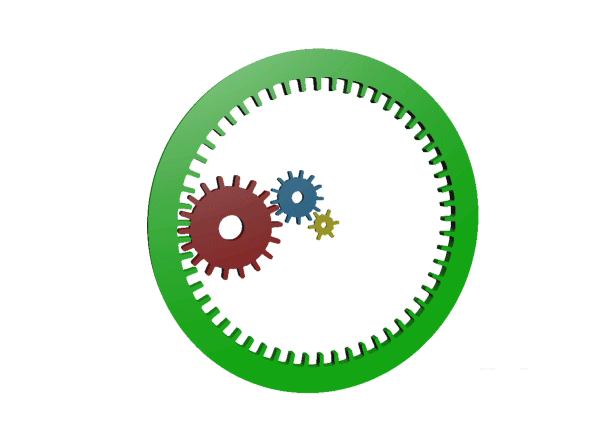

This is true for other configurations of gears:
Here is the other
For example,
These gears each have differing angular velocity.
For example, if implemented in Houdini, the red gear could be rotating at say -$F (frames per second), call this the rotateRedGear
Then the green gear next to it, with 8 teeth, would rotate at a rate of -ch("../rotateRedGear/rz") * 12 / 8
Then the blue gear next to that one, with 6 teeth would rotate at a rate of -ch("../rotateGreenGear/rz") * 8 / 6
Here is the
Example
GearRatioDemo.hipnc
if you want to experiment.This is true for other configurations of gears:
Here is the other
Example
GearRatioInnerDemo.hipnc
if you want to experiment.
