Deborah R. Fowler

USD and Python

Posted June 11 2025
Updated on June 12 2025

Continuing on my USD journey I looked at two sites:

Pick the one you prefer - I personally found the first the best to get started, however both have their strengths.
Jupyter lab - why? for collaborative coding, I'll still with python on command line below. (if you do use Jupyter know that you have to use !python filename or %run to run your code.)

Other resources:

https://developer.apple.com/videos/play/wwdc2022/10129/ (Apple General Overview)
https://aousd.org/blog/explainer-series-what-is-openusd/ (Alliance for OpenUSD)

"OpenUSD is more than just another file format; it’s a comprehensive ecosystem that addresses the complex needs of the 3D graphics industry"

https://lucascheller.github.io/VFX-UsdSurvivalGuide/pages/introduction/motivation.html (Production)

USD - "Universal Scene Description" developed by Pixar.

USD is a toolset for reading, writing, editing and previewing 3D data. It is "stackable" in non-destructive layers.
Hydra is an API for generating an image from a USD scene. USD consists of C++ libraries with Python bindings for scripting. There is also a concept of inheritance.

Scene graph (stage) - hierarchy of objects (stored in .usd files), these objects are == prims (geo, materials, lights etc) - may be composed of one or more layers
layers are files with scene information

Composition - is how the usd files are assembled (layering, referencing, payloads, variantSets)

referencing (doesn't copy, refers) is. @./folder/object.usda@
payloads (defer the data being referenced - for large scenes)
layering (like photoshop)
variantSets (variants, such as material binding, color)

Scene graph instancing - used to further optimize memory and performance by reusing parts
LIVRPS (Local, Inherits, VariantSets, References, Payloads, Specializes) strength ordering of opinions across composition arcs

Similar to the box example on the USD and Houdini page, we start with a simple example, however here we use python code to generate the file.

Setting up for working with USD and Python

Note that python will need to be a version < 3.13 (and > 3.9 - I'm using 3.10)
In Windows in cmd you can type python --version to check your version

pip install usd-core

To create an empty USD stage where your 3D scene is assembled you use Usd.Stage.CreateNew(filename) where filename is the string. Another function that will be used below is Usd.Stage.Save()

There are multiple file tyes:

usd (binary format, can be converted to ascii)
usda - ascii (useful when learning and generating files from python)
usdc - compressed binary - minimizes load time - efficient for heavy geo data
usdz - zipped (not editable) but good for XR

Useful utilities for file formats: usdcat and usdedit can be used to create an ascii version of a usd file and usddiff for comparing

A simple example is given at https://openusd.org/release/tut_helloworld.html

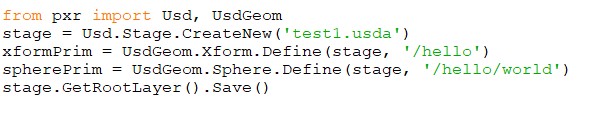

Create your own (I used idle, can be created in any IDE or just with an editor like notepad++ and run command line with python filename)

Because we are using ascii format (test1.usda) we can see the result:

A usda file is created that has a transform named "hello" (a prim) and a sphere name "world" (also a prim)

We can view the result in usdview (you can use usdview from Houdini's command line window OR install it independently).

How to install usdview for general use

If you want to use another IDE such as Visual Studio Code there are instructions https://docs.omniverse.nvidia.com/usd/latest/usdview/quickstart.html

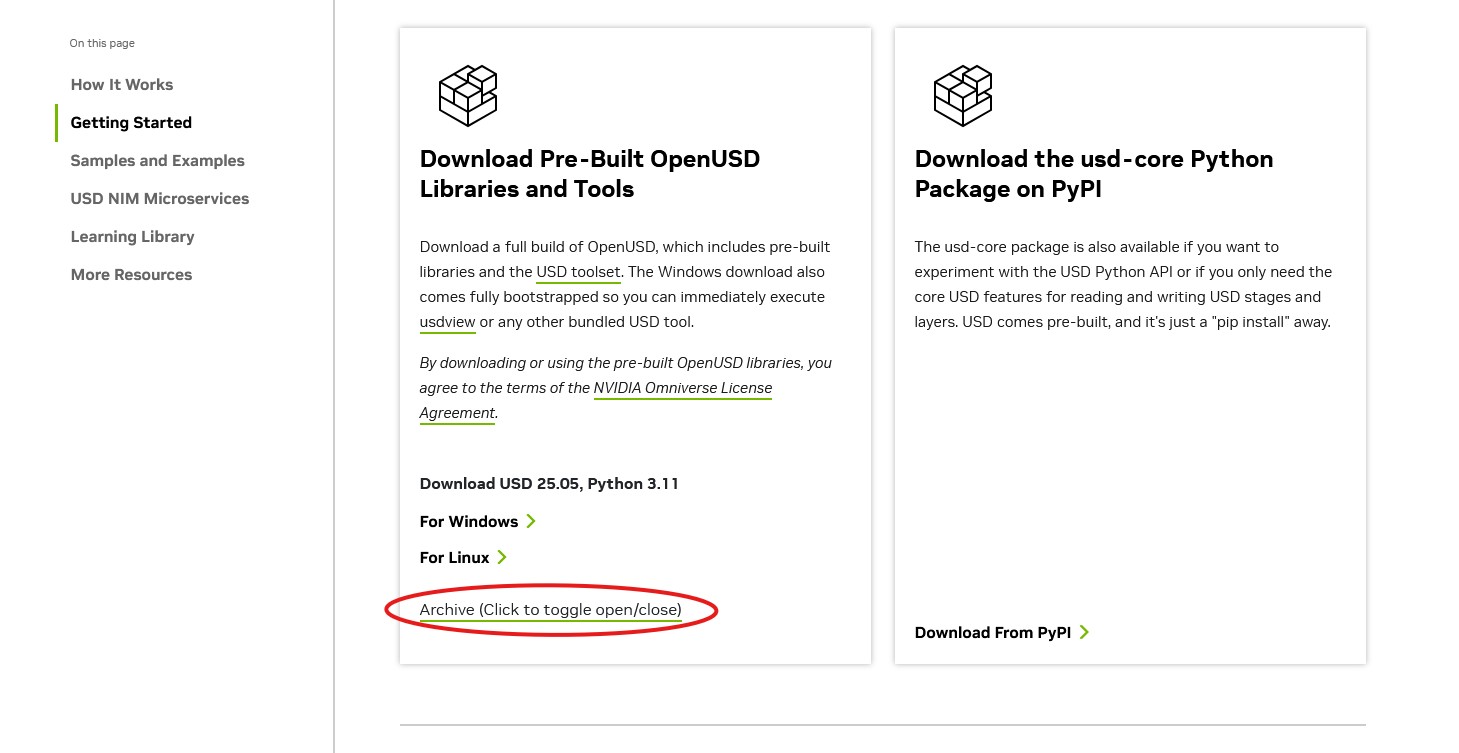

However, I wanted to keep this as simple as possible so I downloaded the appropriate version of the usdview tools (for Python 3.10) from here. It downloads a zip file that is then upzipped,

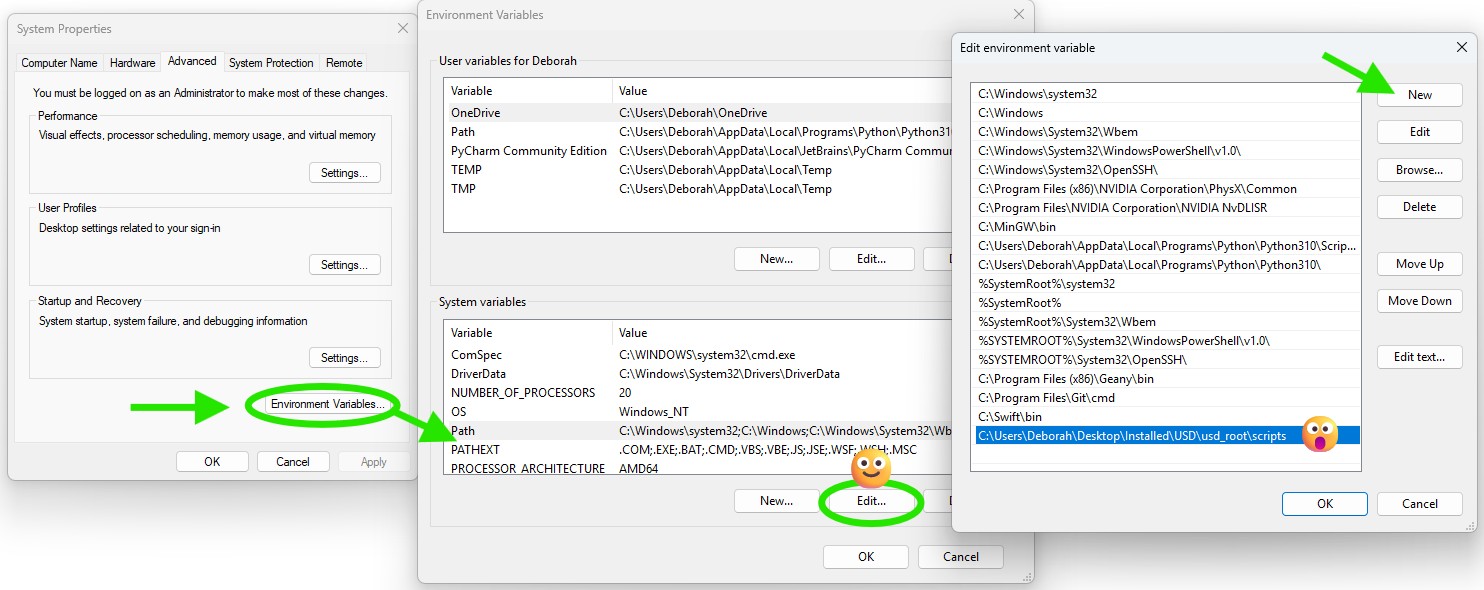

renamed it usd_root, and added to the systems path (windows). (Edit System Properties and Environment Variables)

Back to our file, you can now type in:

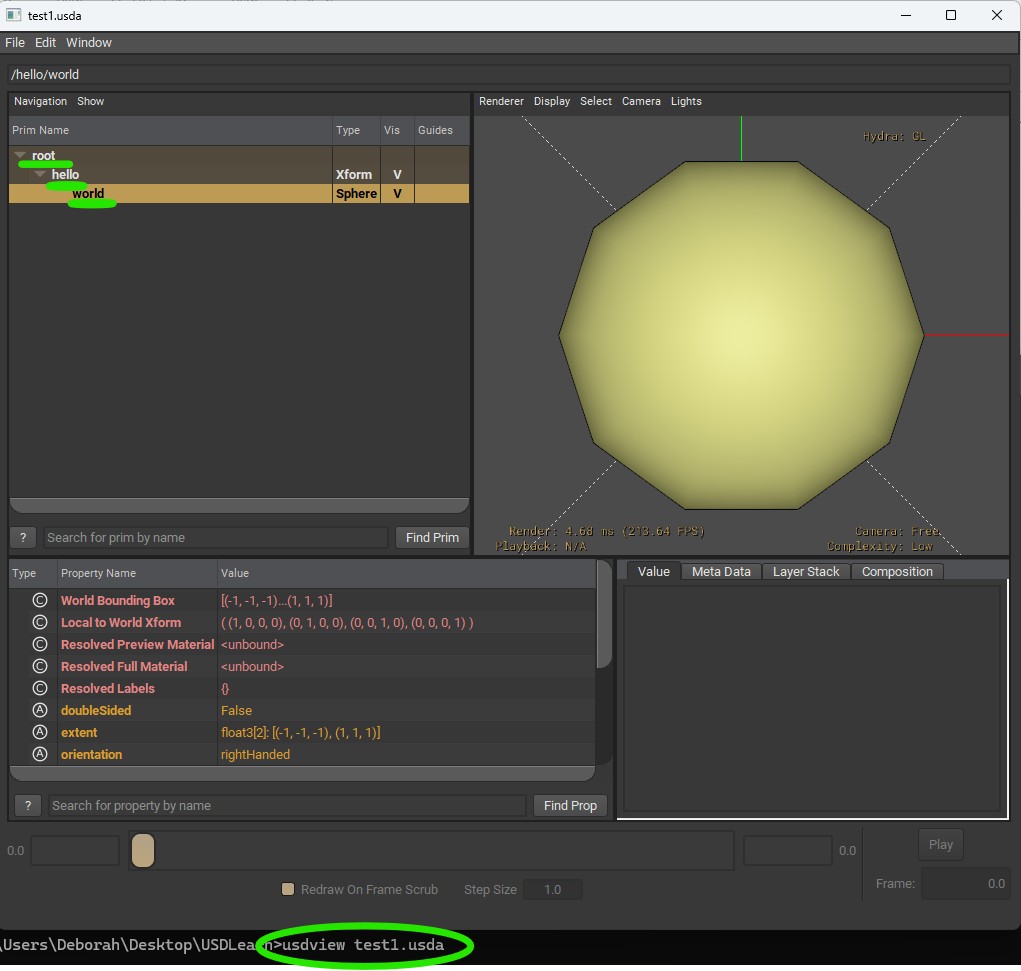

usdview test1.usda

This brings up usdview of the file

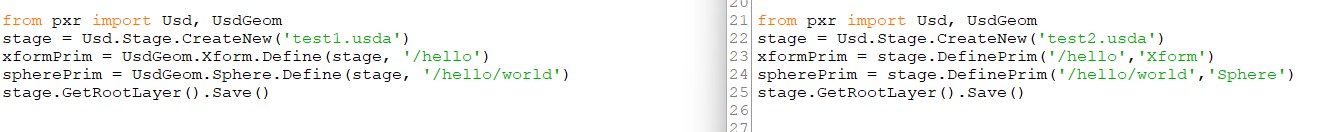

We see our hierarchy. There are two ways this could have been coded:

The one on the left uses UsdGeom API, part of a built-in geometry schema; the right used typenames.

UsdGeom.Xform.Define() is used to create a Xform prim - returns a schema object (UsdGeoXform instance)
stage.DefinePrim() is a more general function creating any type of prim - returns a generic UsdPrim object

This means that for doing additional operations, it will be dependent on the object

USD Schema define what kind of data prims can hold and how the data can be used. It defines the role of a prim. Schemas define structure and meaning to the data.

You can also type i in usdview and use python to look at the object: (such as usdviewApi.prim)

Prims - attributes and relationships

A prim is a container that has data (properties):

attributes (typed data fields - time-sampled allows for animation)
relationships (connections - path-valued)

prim path is the unique identifier (each element is the path between the "/" is a prim)
(primvar is a special attribute associated with a geometric prim for rendering, ie. for per-primitive overrides to shaders/materials for rendering - constant, uniform, varying, vertex, faceVarying)

For example, visbility, display color, extent are attributes.
In the next example we can run a python script to change some attributes on the sphere.

NOTE: A fallback value == default (when no opinions are authored - more later)

scope is like a folder
xform is a prim (transform)

Schema - is like a blueprint or template (like a class in OOP) - defines attributes, relationships and metadata for a prim

Other core modules are
LUX - lighting
Sdf - scene description foundations - defines Usd data model: prims, attributes, relationships, metadata
Gf - graphics foundation (math related and utility - matrix, vector data)
Vt - value types module
Tf - tools foundations module
schema (types - IsA) - domains like GEOM, SHAD, LUX
schema specific API - add functionality, physics, shading ie. UsdPhysicsRigidBodyAPI, UsdShadeMaterialBindingAPI

metadata - can be defined on stage, prim, attribute

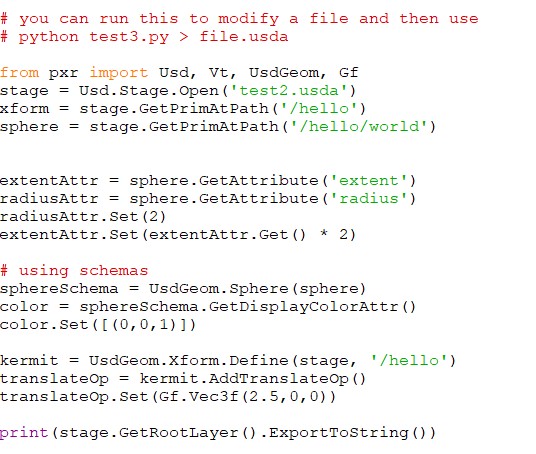

Next, we can open a usda file and edit it using a python script using Usd.Stage.Open('test2.usda'). Rather than typing i and interactively viewing the changes, I created a script to manipulate the previous result:

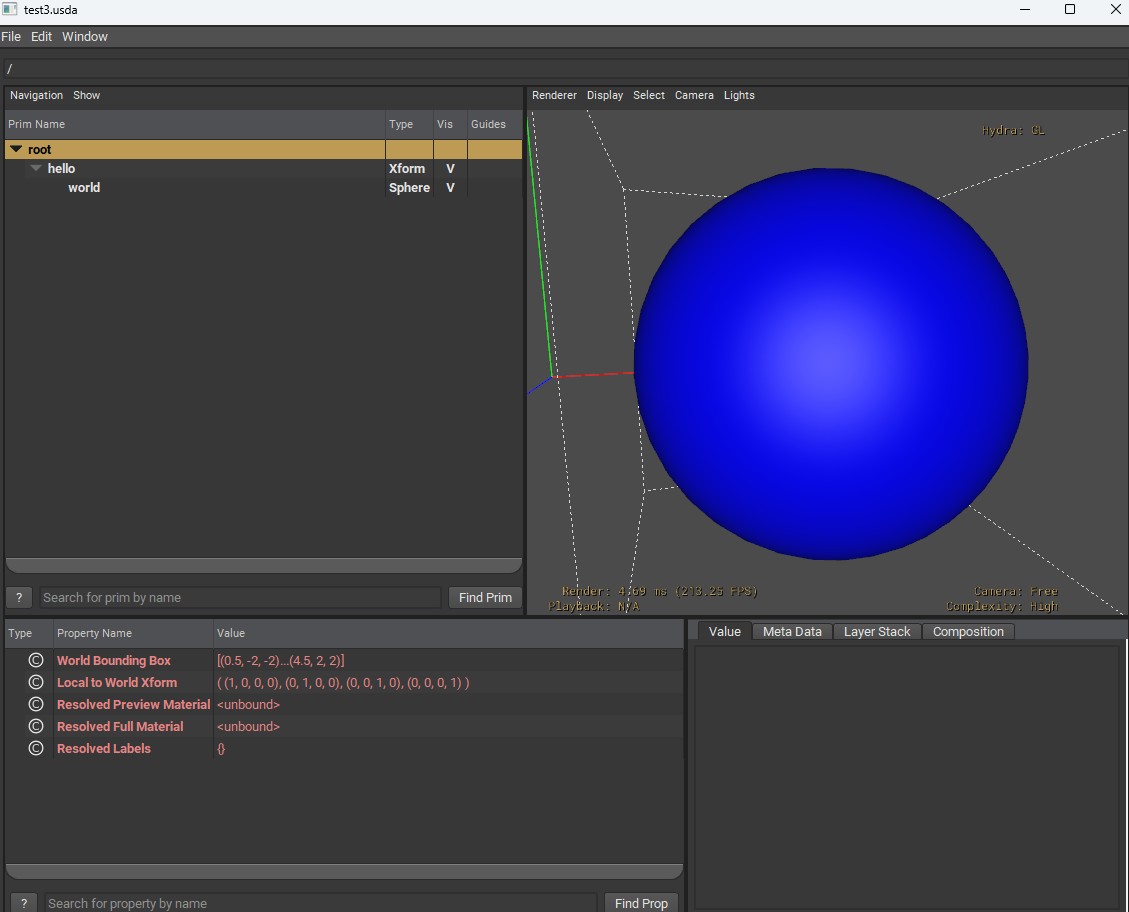

If you pipe this into a file.usda you can view it and see now have a blue sphere 2 units large translated 2.5 units over on the x-axis.

Rather than pipping to a new file you could also use:
stage.GetRootLayer().Save()
to save the changes directly to test2.usda

References

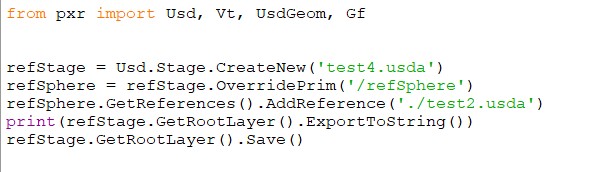

Adding to the script above the line allows us to use references
stage.SetDefaultPrim(xform)

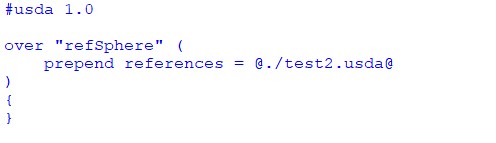

Results in:

prepend is to ensure that the reference is inserted before any references that might be in weaker sublayers

Coding Guidelines

Interesting note while reading through the documentation, although growing up using K&R (Kernighan & Ritchie) format, I switched to Allman as my preferred indentation style while teaching as I found it easier to help students pick out bracing errors. I would highly recommend using only one of those two.
https://en.wikipedia.org/wiki/Indentation_style

USD coding guidelines suggest K&R
https://openusd.org/release/api/_page__coding__guidelines.html
